12V6A电源适配器规格书

文章来源:顾佰特电源 人气:8874 发表时间2018-12-17 12:04:07

1、描述(SCOPE):

      格书适应于12V6A电源适配器

      The document is to specify the functional requirements of a 72W switching power supply.

2、输入特性(INPUT CHARACTERISTICS):

      2.1输入电压(Input Voltage):

          额定电压(Nominal Voltage):100-240Vac

          调整范围(Variation Range):90-264Vac

     2.2输入频率(Input Frequency):

          额定频率(Nominal Frequency):50/60Hz

          调整频率(Variation Frequency):47-63Hz

     2.3输入电流(Input Current):

          当输入交流电压为额定值的下限时,输出电压负载满载,最大输入交流电流1.2A。1Arms max At              any input voltage and rated,                DC output rated load.

     2.4浪涌电流(Inrush Current):

        当输出为额定负载,环境温度为25℃,输入240Vac冷态起动电源时的最大浪涌电流小于30A。

        30Amps Max. Cold start at 240Vac input, with rated load and 25℃ambient.

     2.5 AC漏电流(Ac Leakage Current):

        当输入电压240Vac时,最大漏电流为0.25mA。

        0. 25mA Max At 240Vac input.

3、输出特性(OUTPUT CHARACTERISTICS):

     3.1输出功率(Power Output);

          电压       最小负载     最大负载    峰值电流    输出功率

          Voltage      Min. Load     Max. Load      Peak       Output Power

           +12Vdc         0A                  6A            7.8A             72W

     3.2负载特性/调整率(Combined Load/Line Regulation):

          电压   最小空载电压  最大空载电压      线性调整      负载调整

          Voltage     Min. Voltage     Max. Voltage     Line Regulation   Load Regulation

           +12Vdc       12.00V                12.6V                     ±5%                           ±5%

         测试条件:任何负载正常工作下,使用示波器带宽为20MHz连接到充电器的输出端,同时输出端并       连一个47uF的电解电容和一个                0.1uF       的瓷片电容。
     3.3波纹和噪音(Ripple And Noise):

         The ripple and noise are as follows when measure with Max. Bandwidth of 20MHz and   Parallel 47uF/0.1uF,crossed                             connected at testing point.

                    电压            最大波纹最大噪音

                Voltage          Ripple And Noise(Max.)

                 +12Vdc            80.5mVp-p
     3.4启动延迟时间(Turn On Delay Time):

           当输入115Vac和输出最大负载时,最大启动时间为2S。

           2 second Max. At 115Vac input and output Max. Load.

     3.5上升时间(Rise Time):

           当输入115Vac和输出最大负载时最大时间为40mS。

           40mS Max. At 115Vac input and output Max. Load.

     3.6保持时间(Hold Up Time):

           当输入115V和输出最大负载时,最小保持时间为5mS。

           5mS Min. At 115Vac input and output Max. Load.

     3.7效率(Efficiency):

            当输入100Vac和输出最大负载时,最小83%。

            83%Min.At 100Vac input and output Max. Load.

            当输入240Vac和输出最大负载时,最小85%。

            85%Min.At 240Vac input and output Max. Load.

    3.8过冲(Overshoot):

           在电源开启或关闭的时候,最大15%。

           15%Max.When power supply at turn on or turn off.

    3.9 空载损耗不大于0.5W.

4、保护功能(PROTECTION REQUIREMENT):

     4.1短路电路保护:

          Short Circuit Protection:

          该电源供给器在短路解除时,能正常工作恢复。

         The power supply will be auto recovered when short circuit faults remove.

     4.2过流保护(Over current Protection):过流故障排除后,电源将自动恢复正常工作。

          The power supply will be auto recovered when over current faults remove.

     4.3过压保护(Over Voltage Protection)

         当输出电压超过额定电压时,电源将保护,故障排除后不能恢复正常工作。

        The power supply will not be auto recovered when faults remove.

5、环境要求(ENVIRONMENTAL REQUIREMET):

      5.1工作温度(Operating Temperature):

          0℃~ 70℃,满载,正常工作(Full load Normal operation)。

          0℃to70℃,Full load Normal operation.

      5.2储存温度(Storage Temperature):-20℃to85℃,带外壳(With package).

      5.3工作湿度(Relative Humidity):

         5%(0℃)~90%(40℃),72小时,满载,正常工作

         5%(0℃)~90%(40℃)RH,72Hrs,Full load Normal operating.

     5.4振动(Vibration):

         1、测试标准:国际电工电子委员会  Operating: IEC 721-3-3 3M3

              5~9Hz,A=1.5mm 加速度(9~200Hz,Acceleration 5m/s2)
         2、运输     (Transportation): IEC 721-3-2 2M2

              5-9Hz,A=3.5mm

              9~200Hz,加速度Acceleration=5m/S2

              200~500HZ,加速度Acceleration=15m/S2

         3、轴向振动(Axes,10 cycles per axis).

              在测试过程中不能出现永久性的损坏。

              No permanent damage may occur during testing.

             The product has to restors its original situation after power off/on.)

             在电源开启和关闭后,样机能够恢复到最初条件。

    5.5跌落试验(Dropping)(Packed):

        一个角,三个棱, 六个面。

        1 corner,3 edges, and 6 surfaces

        高度76cm  Height:76cm

6、安全及EMC要求(SAFETY AND EMC REQUIREMENT):

      6.1安全:符合UL  CE  GS  KC  SAA  ROHS标准

      6.2高压(DIELECTRIC STRENGTH)(H-Pot):

          ()Primary to secondary),3000Vac/5mA/5s.

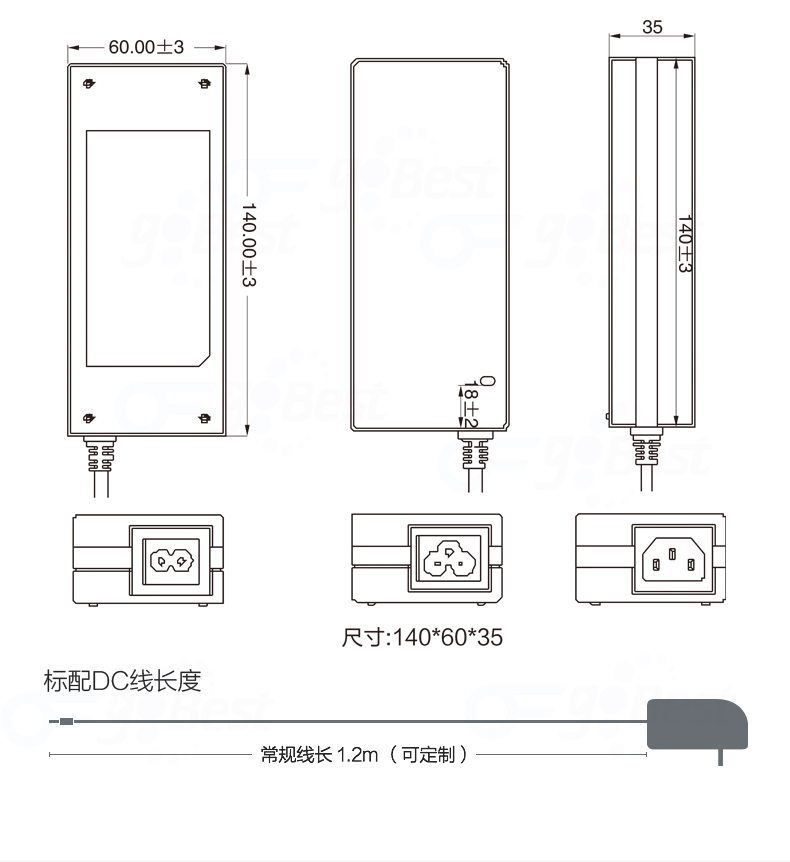

7、结构参数(MECHANICAL REQUIREMENT):

     7.1外壳(Enclosure):

         外壳尺寸:L140*W60*H34mm

         The power supply size L:140*W:60*H:34mm

     7.2输入座 (Input Connector): 8字型输入座

     7.3;输出线

          DC 线: AWM  2464  20AWG*2C,VW-1,80℃,FTI,300V,线上有字,总1.2米,带环加5.5*2.1*10mm          公头 音叉

          DC cable: AWM 2464  20AWG*2C,VW-1,80℃,FTI,300V,with word on the  cord, Length:1.2M, with the                                           conector:5.5*2.1*10mm
